Beschreibung

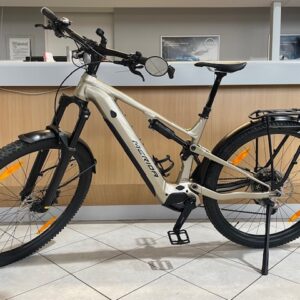

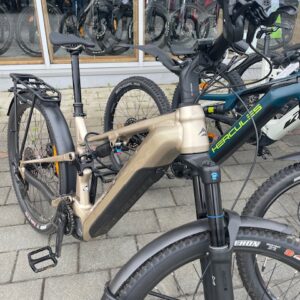

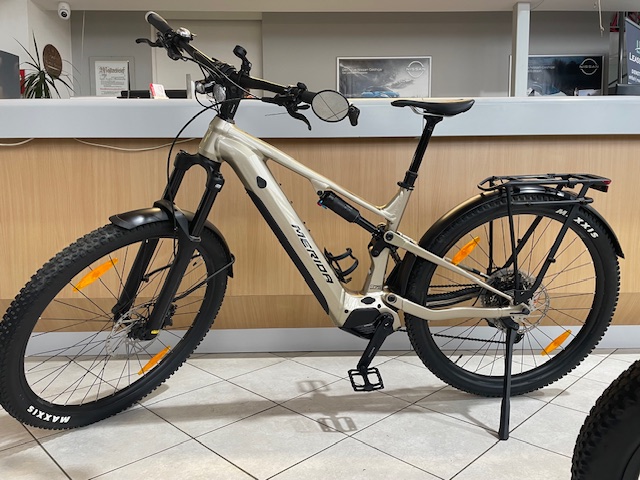

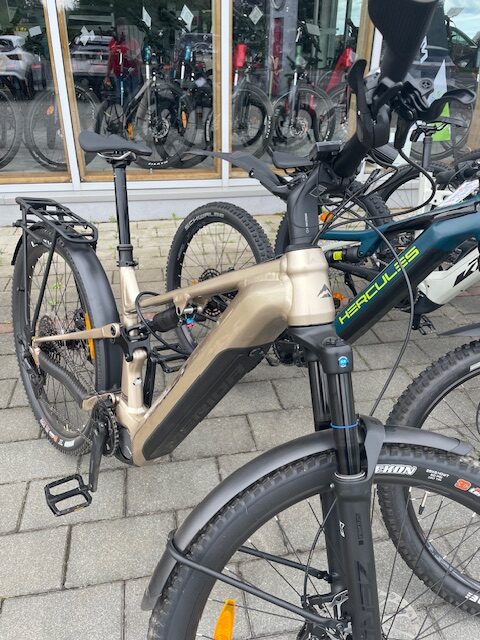

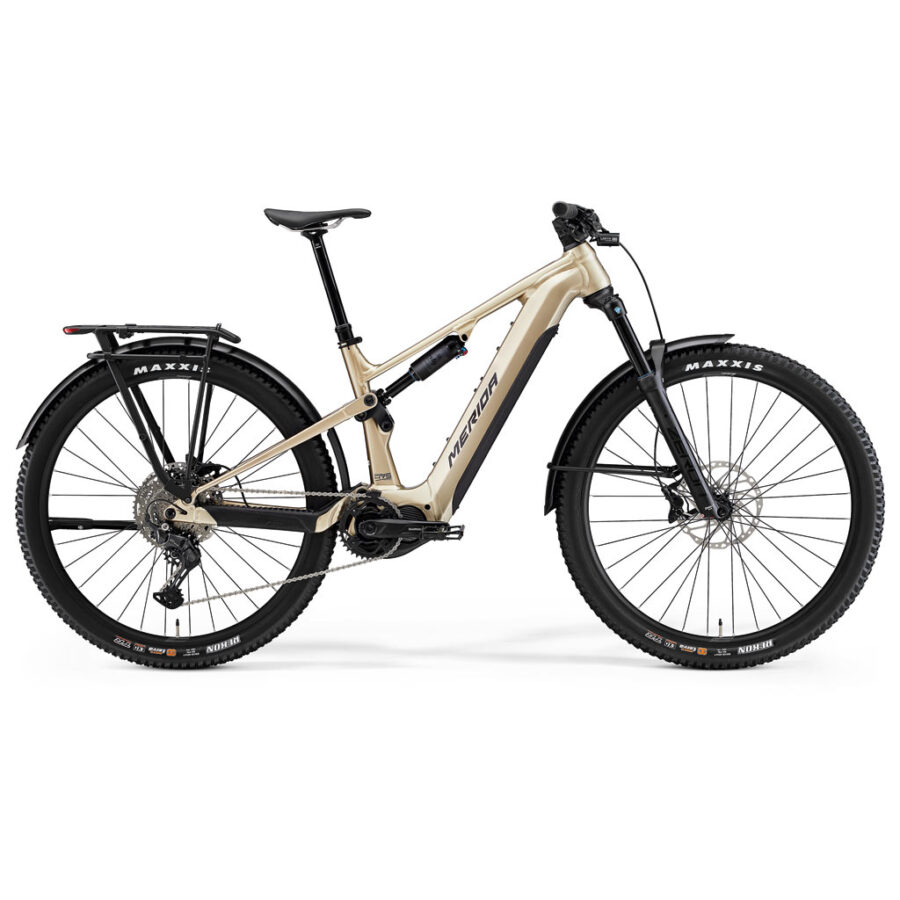

Frame eONE-FORTY LITE IV; MAT aluminium; 133 STR;
27.5×2.8″ max. WHS; 148×12 AST; intube
Size Long

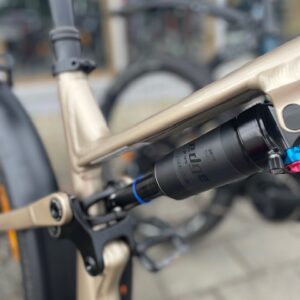

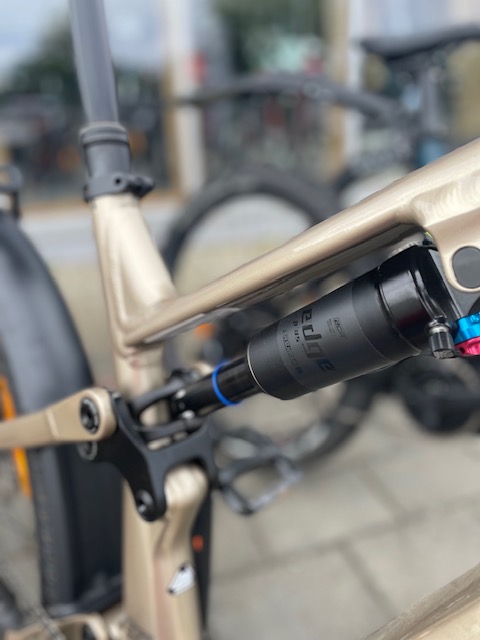

Shock RS21 Edge Plus STD 2CR 230×57.5 – M9
Fork SF25-ZERON36X-BOOST
Foam VLD-919-1 Foam Black
Brake-F Shimano MT420; 4 piston
Brake-R Shimano MT420; 4 piston
rotor-F Shimano RT64; 203 mm
rotor-R Shimano RTEM600; 203 mm
C-Housing OTSP41S
Chain Shimano LG500
Chainwheel FSA 1x Steel Chainring; 36 ATC
Crank/Size Shimano FC-EM600; 165 mm for all sizes
BB Set included

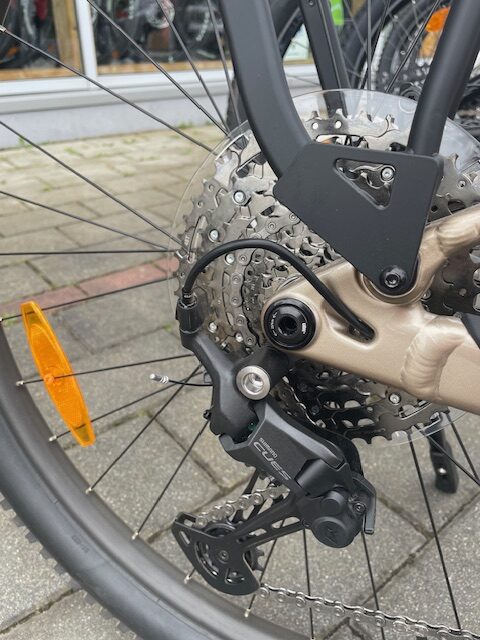

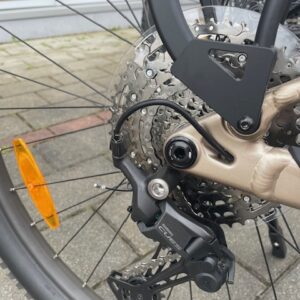

DERA-R Shimano CUES U6000 ; GS
Freewheel Shimano LG400; 11-48 ATC; 10 GER
Pedal VP VPE-527
Grip MERIDA EXPERT EC
H-Bar MERIDA EXPERT eTR; 780 WHB; 20 RHB
H-B Stem MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD;
Supernova mount
Stem/Size 40 mm all sizes
Head Set Acros ICR MERIDA EXTERNAL neck w/ Blocklock
Compressor Star Nut
spacer 2*10mm, 1*2.5mm
Hub-F Shimano TC500-B; 110×15 WHF; 32 SPH; Centerlock
Hub-R Shimano TC500-HM-B; 148×12 WHR; 32 SPH; Centerlock
Axle-R MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Reflector DIN
Rim MERIDA COMP TR II; 110×15 WHF; 148×12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29″
Saddle MERIDA EXPERT SL; V-mount; incl. MERIDA minitool
Seat Clamp MERIDA EXPERT
Seat Post MERIDA EXPERT TR II; 34.9 DSP; 0 SSB;
M/L: 200 SPT
Shifter-F Shimano SL -MT500-IL
Shifter-R Shimano CUES U6000 10
clamp-R JAGWIRE FLEX-SL:CP
Spoke Black stainless
Inner Tube 27.5*2.3/3.0(2.4/2.8) F.V 48L THIN(1MM)
Tire-F MAXXIS REKON; 29×2.4″; fold; 3C EXO MaxxTerra
Tire-R MAXXIS REKON; 29×2.4″; fold; TR 3C EXO MaxxTerra
Hardware stainless
Decal under coating
protector-1 CSP-104
Carton A5 [ebike] fully
Manual MERIDA
Special Finish BLOCKLOCK ZS66
Packing 0,98
Bell Alloy
Chain device MRP 1x
Carrier Massload MA 013
Fender EOF-204
Kickstand Atranvelo ED-100-PC
Light-Front LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Light-Rear Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
E-Shift parts-4 Trendpower Main Cable Gen 2

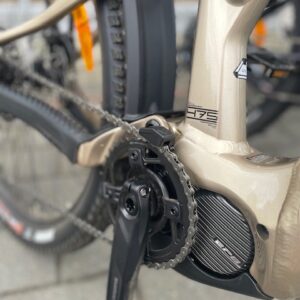

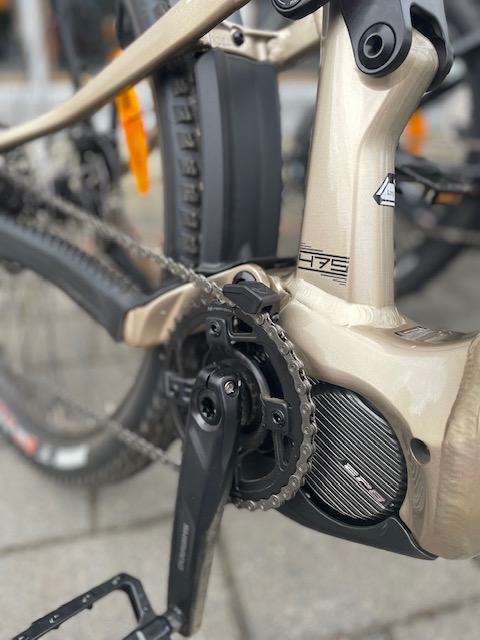

DRIVE Unit Shimano EP801; 85Nm
Drive cover CR-010 + CR011
BATTERY Trendpower Internal Battery Gen 2; 750Wh
Battery holder Trendpower Battery holder
Battery charger Trendpower EU Charger; 4A
Speed Sensor Shimano EW-SS301
SWITCH Shimano SW-EN600-L

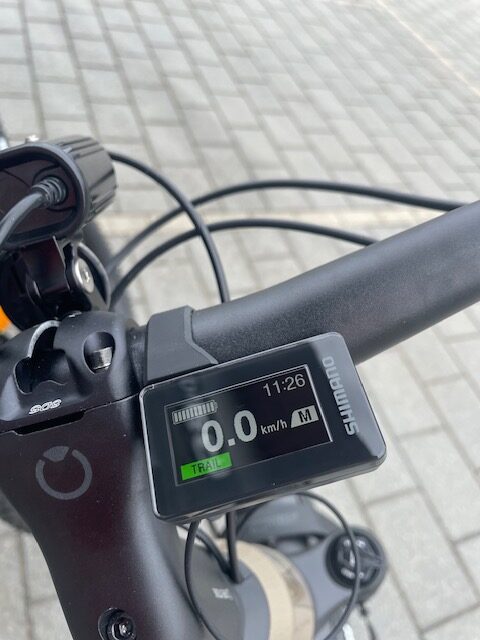

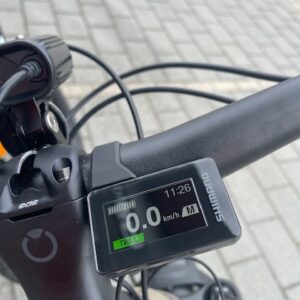

DISPLAY Shimano SC-EN600
Electric wire Shimano EW SD300; 950mm
Battery cover CR-009
Satellite charging port Trendpower On-bike charging cable
Charger adapter Trendpower Adapter Cable
Cable guide E8000-CG1
